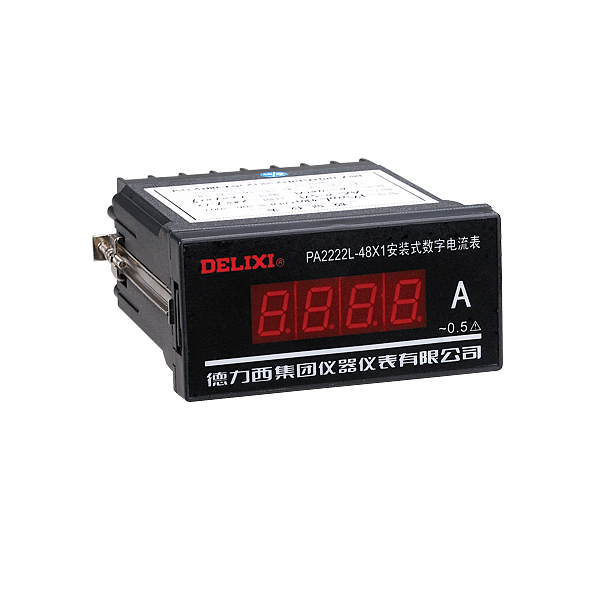

Type P□2222□-48X1 Mounted Digital-display Panel Meter
Category: Panel Meter
Print this page
Fav this page
E-mail us: yqyb@delixi.com
This product contains the following details
| Product name | Input method | Outline dimension | Code | Range |
| PA | L | 48 | X1 | * |
| PA: PA2222 Ammeter |
L: AC C: DC |
48:48×96(mm) | X1: digital-display meter |
*: *A (V, Hz, COSφ) Refer to Range Parameter Table |
| PZ: PZ2222 Voltmeter | ||||
| PP: PP2222 Frequency Meter | ||||
| PX: PX2222 Power Factor Meter |
| Input method | Type |
| DC | Ammeter, voltmeter |
| AC | Ammeter, voltmeter, Frequency Meter, power factor meter |
Range Parameter Table
| Product type | Type | Range |
| Product type |
PA2222C-48X1 |
Directly connect to 50μA～500μA |
| Directly connect to 1mA～500mA | ||
| Directly connect to 1A～5A | ||
| Connect to 5A～10k via external shunt | ||
| DC voltmeter |
PZ2222C-48×1 |
Directly connect to 3V～600V |
| Connect to 750V～1.5kV via external resistant | ||
| AC ammeter |
PA2222L-48×1 |
Directly connect to 0.1A～5A |
| Connect to 5A/5A～10kA/5A via 5A Secondary CT | ||
| AC voltmeter |
PZ2222L-48×1 |
Directly connect to 3V～600V |
| Connect to 380V/100V～380kV/100V via 100V Secondary VT | ||
| Frequency Meter |
PP2222L-48×1 |
45Hz~55Hz 55Hz~65Hz 45Hz~65Hz |
| 100V 220V 380V | ||
| Power factor meter |
PX2222L-48×1 |
0.5 (lead) ～1～0.5 (lag) |
| 100V/5A 220V/5A 380V/5A |
Order Information:
The ordering code for digital panel meter (AC input, ammeter, dimension: 48x96) is PAL48X1*.
n Easy to read, LED display of long lifespan
n High accuracy and good full range linearity
n Stable and reliable performance
| Technical Parameters | Indicators | ||
| Input | Network | Single-phase, Three-phase | |
| Voltage | Overloaded | Constant: 1.2 Un Instant: 1.5 Un | |
| Current | Overloaded | Constant: 1.2 In Instant: 1.5 In | |
| Frequency | 45Hz~55Hz | ||
| Output | Display Methods | Voltage, Current, Frequency: 3.5-digit LED display | |
| Power Factor: 5-digit LED display | |||
| Accuracy | Voltage, Current, Frequency: 3.5-digit display | ± (0.5%RNG+1 figure) RNG: full range value | |
| Power Factor: 5-digit LED display | ± (0.5%RNG+2 figures) RNG: full range value | ||
| Power | Range | AC220V±10% | |
| Power Consumption | ＜3.5W | ||
| Safety |
Voltage Withstanding |
Input and auxiliary power supply | ﹥2kV50Hz/1min |
| Insulation Resistance | Resistance of auxiliary power supply & input corresponding to the case >100MΩ | ||

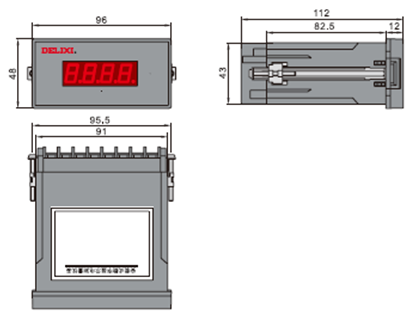

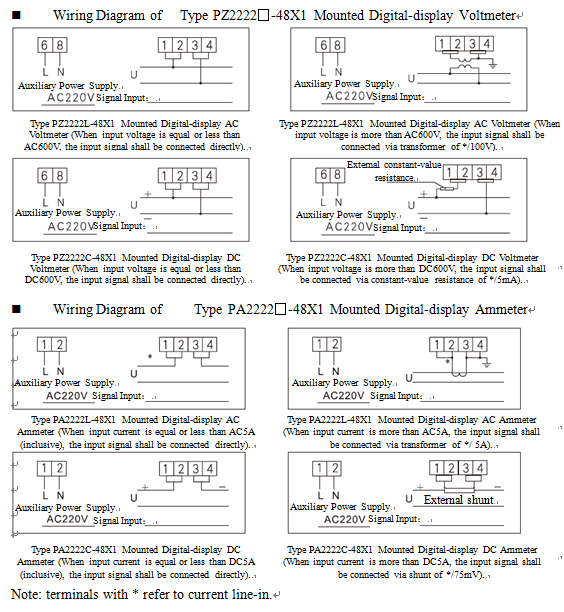

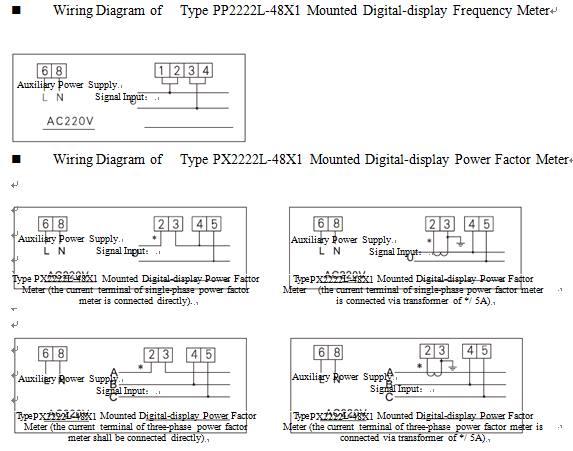

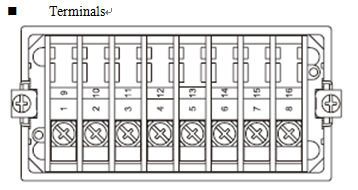

Wiring Diagram
